A 150mm fan quotation is meaningful only when it identifies airflow at pressure, electrical load, installation parts and the conditions in which the fan will operate. By comparing those details, you can separate a basic ₹700–₹2,000 unit from a commercial model costing ₹1,500–₹4,500 and calculate the installed cost before ordering.
Key takeaways
- Treat online prices as indicative until the supplier confirms specifications and delivery.
- Confirm whether 150mm refers to the fan diameter, duct connection or wall opening.
- Request airflow, motor rating, noise level and protection details with every quotation.
- Check hazardous-area requirements before installing an axial fan near flammable vapours.
What does a 150mm exhaust axial fan cost in Chennai?
Expect a 150mm exhaust axial fan price in chennai to fall into these indicative buying bands, not firm quotations:
| Option | Indicative price | What it usually covers |
|---|---|---|
| Basic domestic | ₹700–₹2,000 | Light-duty fan for short, low-resistance exhaust paths |
| Commercial or industrial-duty | ₹1,500–₹4,500 | Stronger construction, motor and bearings |
| Specialist or custom | Substantially more | Certified flame-proof, stainless-steel, high-IP or custom-built equipment |
The 150mm exhaust fan price is not comparable between sellers unless both quote the same duty. “150mm” normally means an approximately 6-inch nominal propeller diameter; it does not fix airflow, pressure class or motor rating. Two fans of that size can differ sharply in air delivery, noise, enclosure protection and continuous-use capability.
Confirm whether the amount includes GST, freight, mounting frame, backdraft shutter, safety guard, speed controller, delivery and installation. These extras can change the delivered price more than a small wattage difference.
A bare fan price excludes the work needed to operate it. A complete installed price may include labour, electrical isolation, wall preparation, weather protection and commissioning. Ask the seller to state each item separately.
Before comparing quotations, check:
- Exact model number and warranty
- GST status, delivery location and quotation validity
- Included accessories, including shutter, guard and frame
- Installation scope and final commissioned price
A low quotation that omits these items is not necessarily cheaper.
Which specifications actually drive the 150mm exhaust fan price?
Compare the 150mm exhaust fan price only after matching the technical line items below. A lower quote can hide a lighter-duty motor, lower airflow or missing accessories.
| Item | Require on the quotation | Why it affects comparison |
|---|---|---|
| Air performance | Rated airflow in m³/hour or CFM, static pressure at that airflow, and an airflow-versus-static-pressure curve or operating point | Free-air CFM is measured near zero resistance and cannot predict flow through a grille, louvre, shutter, duct or filter |
| Motor data | Input wattage, voltage, rated current, RPM, insulation class and duty cycle | These define electrical load, heat tolerance and continuous-use capability |
| Sound and support | Noise in dB(A), bearing type and warranty period | Noise, service life and replacement risk differ between otherwise similar fans |
| Construction | IP rating, guard or shutter inclusion and complete accessory list | A bare fan is not equivalent to a supplied, protected assembly |
| Standards | Applicable standard information, including IS 2312 for axial-flow fan performance | The reference lets you check how performance was measured |
IP44, IP54 and IP55 are enclosure designations under IEC 60529. They do not prove flame-proof, corrosion-proof or rainproof suitability. IEC 60335-2-80 addresses domestic-appliance fan safety; it is not hazardous-area approval.
For flame-proof equipment, require a certificate naming the protection technique, gas or dust group, temperature class, zone or equipment category, and the complete fan assembly covered. A flame-proof motor attached to an uncertified fan does not certify the installation.
Does 150mm mean the fan, duct or wall-opening size?
150 mm usually means the nominal propeller diameter—about 6 inches—not the duct diameter or wall cut-out. The casing, clear-airway diameter, duct spigot, grille and required opening can all be different.
Request a dimensioned drawing before cutting the wall. It must show:
- Overall frame dimensions and mounting-hole centres.
- Duct connection diameter and clear-airway diameter.
- Grille dimensions and the minimum wall opening.
Fitting the fan into a smaller opening or duct increases resistance and noise. It can also move the operating point away from the useful airflow range; increasing speed or motor size does not reliably fix that restriction.
Size the ventilation requirement as follows:
- Calculate room volume: length × width × height in metres.
- Multiply that volume by the selected air changes per hour.
- Divide the result by 3,600 to obtain required airflow in m³/second.
- Check contaminant or heat load, duct length, bends, louvres, filters, insect mesh and available static pressure.
A 150 mm axial fan suits short, low-resistance spot extraction more readily than long restrictive ductwork. Choose a mixed-flow or centrifugal fan when pressure demand is high, even if its outlet is also 150 mm.
Provide a make-up-air path through a grille, transfer opening or door undercut. A sealed room can undermine extraction by starving the fan. Ask an axial ventilating fan supplier in Chennai for the drawing and fan curve before ordering.
Will a 150mm fan work safely in your Chennai installation?
A 150mm fan works safely only when its airflow, motor, enclosure and duty match the installation. It can suit a toilet, store room or short, low-resistance cabinet exhaust; an electrical room needs heat-load and make-up-air checks, while a workshop or process area may need a different fan.
1. Confirm the application. Ordinary ventilation is not smoke extraction, hazardous-area ventilation or process exhaust. Do not use standard axial equipment for solvents, combustible dust, high-temperature gas or emergency smoke duty.
2. Check the single-phase supply against the exact nameplate: voltage, rated current and frequency. Install a local isolator, protective earthing and overload protection sized to the motor and installation rules. Do not fit a speed controller unless the motor manufacturer confirms compatibility; an unsuitable controller can cause overheating, hum or failed starting.
3. Check the installation before ordering: wall thickness, mounting frame, weather hood, backdraft shutter, bird screen, vibration isolation, cleaning access and discharge direction. Obtain the required wall opening and duct dimensions from the drawing.
4. Match materials to conditions. Confirm the plastic body and blade withstand operating temperature, oil mist, corrosive vapour, dust, outdoor rain and continuous operation. Ask for the exact model’s operating temperature, chemical-resistance information, IP rating, duty rating and nameplate.
5. Treat certification separately. A flame-proof motor does not certify the complete fan assembly. Request protection technique, gas or dust group, temperature class, zone or equipment category, and the certificate covering the complete unit.
How should you compare Chennai suppliers and the final quotation?
Ask an axial ventilating fan supplier in Chennai or an industrial exhaust fan dealer in Chennai for a purchase-order-ready quotation, not a price against “150mm fan.” Require one exact model and these fields:
- Nominal diameter, clear opening, airflow in m³/hour or CFM, operating static pressure, voltage, phase, current, input power, RPM, noise in dB(A), bearing type, duty cycle, insulation class and IP rating.
- Guard, shutter, grille, mounting frame and other accessories; warranty, GST, freight, installation charges and quotation validity.
| Quotation comparison | Acceptable evidence | Warning sign |
|---|---|---|
| Model performance | Airflow stated at a named static pressure | Free-air CFM only |
| Protection | IP rating plus stated site suitability | IP54 or IP55 presented as rainproof or corrosion-proof |
| Price scope | GST, freight, accessories and installation itemised | Bare fan price compared with installed supply |
Request the datasheet, dimensioned drawing, fan curve, wiring diagram and nameplate photograph before paying. The drawing must confirm the wall cut-out and duct connection, while the curve must show airflow at your system resistance.
For a coastal or exposed site, require separate statements on rain ingress, salt-laden air, fastener corrosion, paint system and condensation drainage. IP54 or IP55 alone does not answer those questions.
Shine Agencies can help match a small fan to lighting, ventilation, cooling or industrial-site requirements; make every quoted technical line and installation task contractual.
Choose the lowest quote only after confirming equal airflow at equal pressure, equal protection and equal included accessories.
Related product

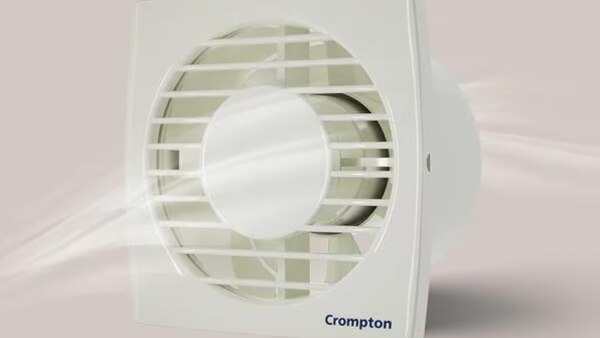

 | Exhaust Fan Exhaust Axial Air 150mm Ventilating fan ₹1599 1.High Speed Operation 2.Good Air Flow & Quiet Operation 3.Modern Design & Elegant Look 4.Light Weight & Rust Proof Plastic Body & Blade 5.Inbuilt... View product → |
Frequently asked questions
What does a 150mm exhaust axial fan cost in Chennai?
Use published prices as indicative buying bands, then request a quotation that states the fan model, motor, airflow, voltage, taxes, delivery and installation charges.
Does 150mm mean the fan, duct or wall-opening size?
Ask the supplier to identify the 150mm measurement. It can describe the impeller or nominal connection, while the required wall opening may differ by the grille, frame and mounting method.
Will a 150mm fan work safely in a Chennai installation?
Check airflow against the room volume, heat and contaminant load. For flammable vapours or dust, specify equipment designed for the site hazard instead of using a standard fan.
How should you compare Chennai suppliers and the final quotation?
Compare matching airflow, pressure, motor power, voltage, enclosure or protection rating, warranty, delivery, GST, installation and replacement-part terms rather than comparing headline prices alone.
