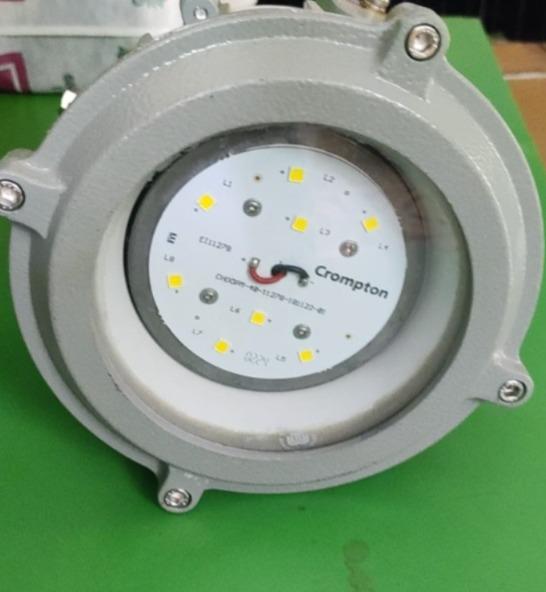

PRODUCT : CAT. NO. – WG/1240
ENCLOSURE : FLAME PROOF (Ex –d ), Gas Group IIA , IIB , IIC
As per IS/IEC 60079-1 : 2014
PROTECTION : WEATHER PROOF IP – 66 AS PER IS/IEC 60529:2001
(Reaffirmed 2014)
AREA & TEMP. CLASS : Ex db IIC T6 Gb ( EX tb / tc IIIC T85 C Db/Dc
( ZONE 1 & 2 & Zone 21 & 22 )
CERTIFICATION : CIMFR, BIS, PESO
TEMPERATURE CLASS : T 6
MATERIAL : DIE CAST ALUMINIUM ALLOY
FINISH : EPOXY POWDER COATED SHADE AS PER IS : 5
EARTHING : 1 No INTERNAL & 2 No’s EXTERNAL
HARDWARE : STAINLESS STEEL
GASKET : ‘O’ RING ENDLESS GASKET NEOPRENE / SILICON
NAME PLATE : SS NAME PLATE CUM WARNING PLATE
GLASS : HEAT RESISTANT CLEAR TYPE-A
ENTRIES : 2 Nos M20 / 1⁄2 “ NPT / EQUIVALENT
VOLTAGE : 140 V – 270 V ( 240 V AC )
POWER FACTOR : ≥ 0.95
INPUT FREQUENCY : 50 Hz.
EFFICACY : ≥ 100 LUMEN PER WATT
COLOUR ( CCT) : 3000K / 5700K / 6500 K / OR AS SPECIFIED
CRI : ≥ 80 RA
THD : ≤ 10 % THD
BEAM ANGLE : 120 DEGREE
SURFACE TEMP. : MAX . 70 ̊
SURGE PROTECTION : 10 KV SPD
LED MAKE : CITIZEN / OSRAM / BRIDGELUX / EQUIVALENT
DRIVER MAKE : OSRAM / PHILIPS / FULHAM / EQUIVALENT
– BIS APPROVED
